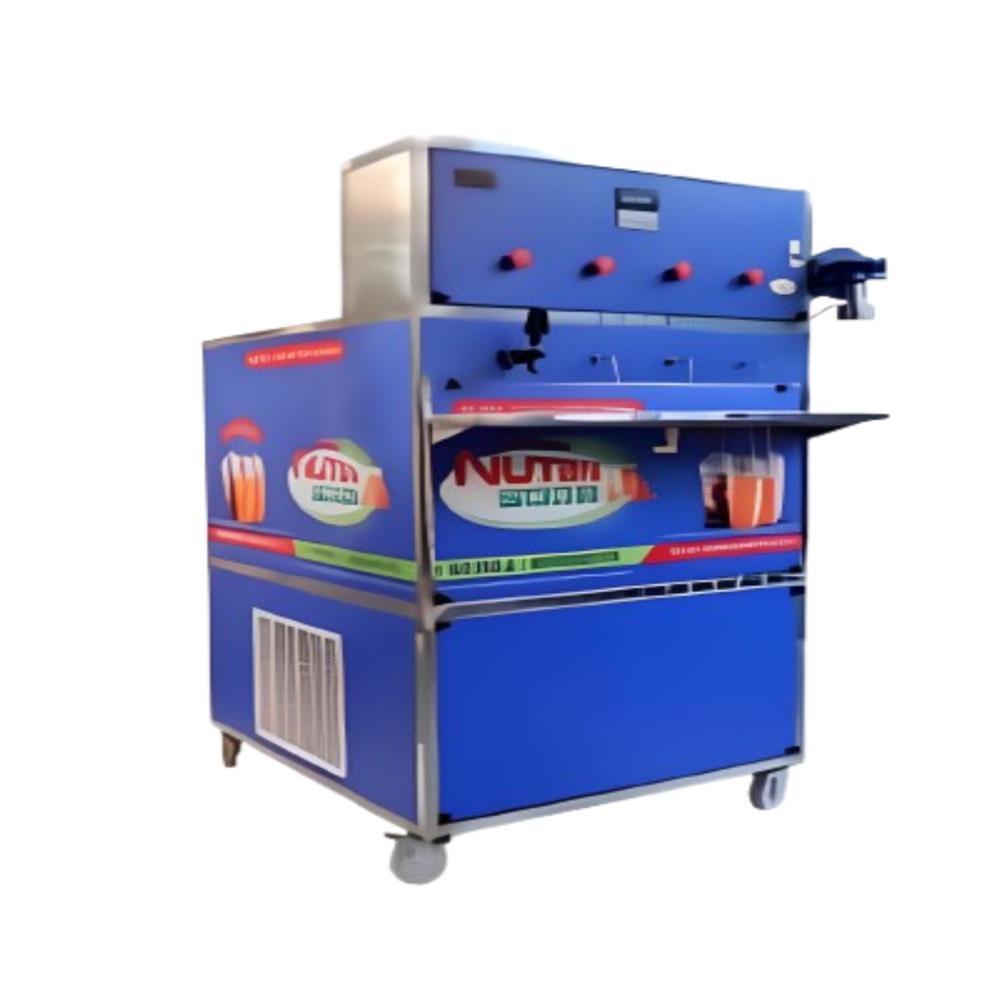

1+3 Soda Bottling Plant

Name: 1+3 Soda Bottling Plant
Brand: NUTAN REFRIGERATION LLP
Price: 180000.0 INR
Availability: InStock

Price 180000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

1+3 Soda Bottling Plant Specification

Automation Grade
Automatic

Production Capacity
Up to 1200 Bottles Per Hour

Speed
Upto 20 bottles per minute

Installation Guideline
On-site installation & training provided

Plastic Processed
PET Bottles

Usage & Applications
Carbonated soft drinks, soda water filling

Model No
SMP-1+3

Frequency
50-60 Hz

Efficiency (%)
96%

Driven Type
Electric

Accessories
Bottle rinser, filler, capper

Motor Power
3 HP

Temperature Range
5C to 40C

Type
1+3 Soda Bottling Plant

Material
Stainless Steel

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
220-440 V

Power
3-7.5 kW

Weight (kg)
Approx 1200 kg

Dimension (L*W*H)
2100 x 1200 x 2000 mm

Color
Silver / Grey

Capacity
900-1200 bottles/hour

Features
High efficiency, low maintenance, easy operation, robust construction

Power Consumption
Approx 5 kW/hour

Surface Finish
Polished

Machine Type
Soda Bottling Machine

Rinsing/Sealing Heads
3/4 respectively

Container Detection
Automatic sensor based

Structure
Modular skid-based

Water Consumption
300 liters/hour

Maintenance
Tool less changeover, easy access panels

Operating Language
Multi-language HMI

Filling Accuracy
1%

Bottle Size
200 ml to 2 L

Changeover Time
< 15 minutes

Sanitization
CIP (Clean In Place) enabled

No. of Operators Required
1-2 persons

Filling Heads
4

Compressed Air Requirement
7-8 Bar

Noise Level
< 75 dB

Capping Type
Screw/CRC/ROPP

Safety Features
Overload protection, emergency stop, safety guarding

Bottle Material
PET/Glass

Filling Principle
Counter Pressure Filling Method

1+3 Soda Bottling Plant Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
5-10 Days

About 1+3 Soda Bottling Plant

Spotlight on the latest addition to industrial soda processing: the 1+3 Soda Bottling Plant-crafted for sublime performance and enviable efficiency. With a reduced price and a sought-after modular skid-based structure, it effortlessly accommodates bottle sizes from 200 ml to 2 L. This robust stainless steel machine boasts a powerful 3-7.5 kW drive, multi-language HMI, and PLC-controlled precision. Enjoy up to 1200 bottles per hour, CIP-enabled sanitization, tool-less changeover within 15 minutes, and automatic safety monitoring. Ideal for soda water filling, this is an opportunity for industry leaders.

Premium Stainless Steel Construction for Versatile Soda Processing

The 1+3 Soda Bottling Plant features a modular, polished stainless steel body, ensuring durability and a hygienic surface finish. Designed for PET and glass bottles, it excels in carbonated beverage production, from small-scale startups to major exporters and traders. Perfectly suited for soda water and soft drinks, top beverage manufacturers and suppliers can leverage its flexibility, rapid changeover, and high operational efficiency, enhancing productivity with minimal manpower and enviable automation.

Sample Policy, Payment Terms, and Market Reach for the 1+3 Soda Bottling Plant

Sample provision follows a streamlined valuation process before order completion. Payment terms are negotiable, usually comprising advance and balance upon delivery. Freight and logistics are efficiently managed to ensure timely arrival, minimizing downtime for new setups. Our main export markets include Asia, the Middle East, and Africa, making this plant ideal for manufacturers aiming for international expansion while maintaining cost-effectiveness and reliability throughout the procurement cycle.

FAQ's of 1+3 Soda Bottling Plant:

Q: How does the 1+3 Soda Bottling Plant ensure high filling precision?

A: The plant utilizes a counter pressure filling principle and PLC control system, achieving up to 1% filling accuracy for consistent product output.

Q: What is the process for changing bottle sizes on the 1+3 Soda Bottling Plant?

A: The modular skid-based structure and tool-less changeover design allow operators to switch between bottle sizes-ranging from 200 ml to 2 L-in under 15 minutes, streamlining production runs.

Q: When is on-site installation and training provided for this soda bottling machine?

A: On-site installation and comprehensive training are offered upon order completion, ensuring seamless commissioning and optimal operator proficiency.

Q: Where can the 1+3 Soda Bottling Plant be effectively deployed?

A: This plant is suitable for beverage manufacturers, exporters, suppliers, and traders handling carbonated soft drinks, soda water, and PET/glass bottle packaging.

Q: What are the main benefits of using this soda bottling plant for production?

A: Users benefit from high output rates (up to 1200 bottles/hour), easy maintenance, automatic safety features, and minimal operational noise (<75 dB), contributing to a safe and efficient workflow.
